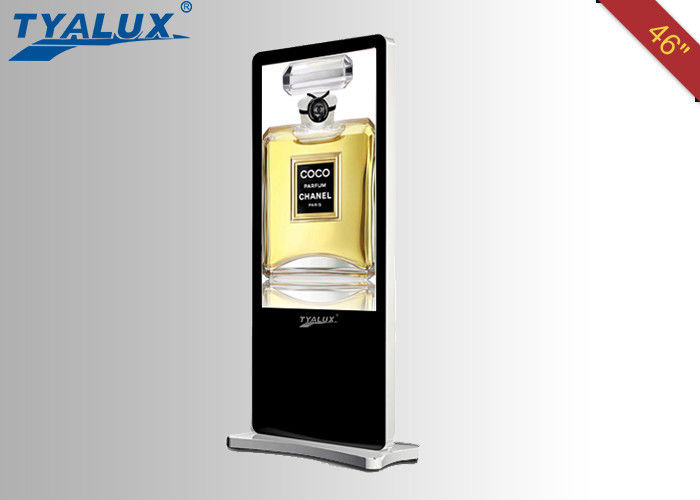

Waterproof Touch LCD Digital Signage Stand Alone with Android 4.2 OS

Waterproof Touch LCD Digital Signage Stand Alone with Android 4.2 OS

Waterproof Touch LCD Digital Signage Stand Alone with Android 4.2 OS

Product Details:

Place of Origin: China
Brand Name: Tyalux
Certification: CE/ROHS/FCC/ISO9001:2008
Model Number: TYL-HGM46LA(N)04

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Three choices:carton box, wooden box or flight case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or L/C western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Name: Advertising Poster Application: Indoor
Display Area: 930.2(H)×523.2(V)mm Resolution: 1920*1080
Brightness: 400cd/㎡ Contrast Ratio: 4000:1
Operating System: Android 4.2.0 Max Cunsumption: 110W
Backlit: LED Network: Ethernet, Wifi Or 3G
RAM: 1G ROM: 4G
External Memory: SATA/USB/SD Panel Dimension: 1798(L)*638(H)*75(D)mm
Viewing Angle: 178°/178° Safty: Safty Lock Design
Picture Format: BMP/JPEG/PNG/GIF Video Format: Wmv/avi/flv/rm/rmv/mpeg /ts/mp4 Etc.



46 inch Advertising Poster LCD Digital Signage 400nits with Android4.2.0 System

Description:



1: Industrial-grade design, heavy-duty built for non-stop loop-playing video and picture 24/7/365.

2: Memory card: support CF/SD cards and with USB port Multiple file formats supported for advertising player: mp3, mp4, jpg,MPEG1, MPEG2, MPEG4 and AVI format.

3: FULL HD 1080P, Array-LED backlit.

4: Support USB or network(LAN/WIFI/3G) working




Specifications:

Specification for Panel

Specification for Android main board

Screen size

46" TFT LCD Panel

CPU

1.0 - 1.5GHz

Touch screen

Optional

Infrared remote control

support

Max.Resolution

1920*1080

RAM

1G

Viewing angle

178°/178°

Internal Memory

NAND FLASH 4G

Color

16.7M

External Memory

SATA/USB/SD card/
CF card

Brightbess

400cd/m2

resolution

1920*1080

Contrast ratio

4000:1

Operating system

Android 4.2.0

Response time

5ms

Play mode

Circulation, timing,
 inter-cutting etc.

Viewable area

1018(H)×572(V)mm

Network

Ethernet, wifi, 3G is
optional

Working power

AC100-240V  50/60Hz

Video format

wmv, avi, flv, rm, rmvb,
mpeg, ts, mp4 etc.

Speaker power
consumption

10W

Picture format

BMP, JPEG, PNG, GIF

Max power consumption

110W

Networking protocol

TCP IP/PPPOE/ICMP/
DHCP/DNS/FTP/HTTP

Standby power consumption

0.3W

USB2.0 port

2X USB HOST
external mouse and
keyboard

Working humidity

10%-90%
(Without dew )

Ethernet

1X RJ45, 10M/100M optional

Working temperature

0℃-40℃

LVDS / output

1

Storage temperature

-20℃-60℃

HDMI output

1

Remarks

AV output

CVBS AV output and
left and right channel output

Installtion type

Floor standing

VGA output

1

Design

Iphone appearance

Real time clock

Yes

comes with accessory

User Manual  *1

Timing switch

Yes

Remote control *1

System upgrade

USB upgrade and
network upgrade supported

CD  *1

Safty

Safty lock design

Floor standing installation kits

Working temperature

0℃-40℃

Pane Demensions


1798(L)*708(H)*75(D)mm

Storage temperature

-20℃-60℃




Applications:


Movie Theaters,Bars,Beauty Shops,Subways,negotiable securities,insurance companies,convention centers,exclusive agencies,chain shops,fashion shop,large-scale sales,bus & train station,shopping centre,entertaiment bar,cinima and ktv,school and book shop

Why choose Weiguan Views:

1: All our products are industrial-grade designed

2: Heavy-duty built for non-stop loop-playing video and picture 24 / 7 / 365

3: We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements

4: Professional service and honesty based. Reply your inquiry in 8 working hours.
