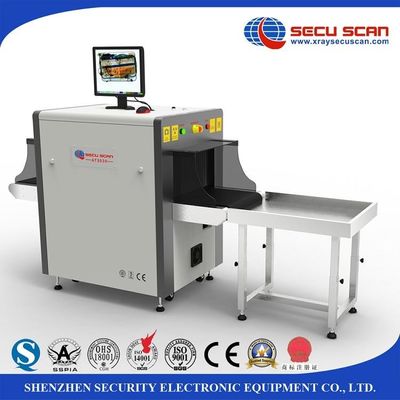

xray scanner airport

Tunnel Size:

500(W)*300(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

150kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

8mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

80 degree

Anode Voltage:

80Kv

Anode power:

0.6mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

 reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,  Whole screen

continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.0 KW (max),  0.3KW(working)

Noise:

<65db
