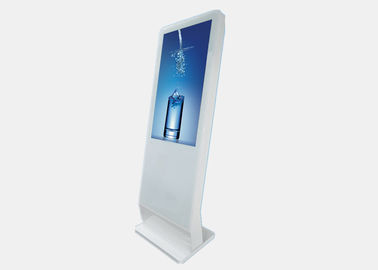

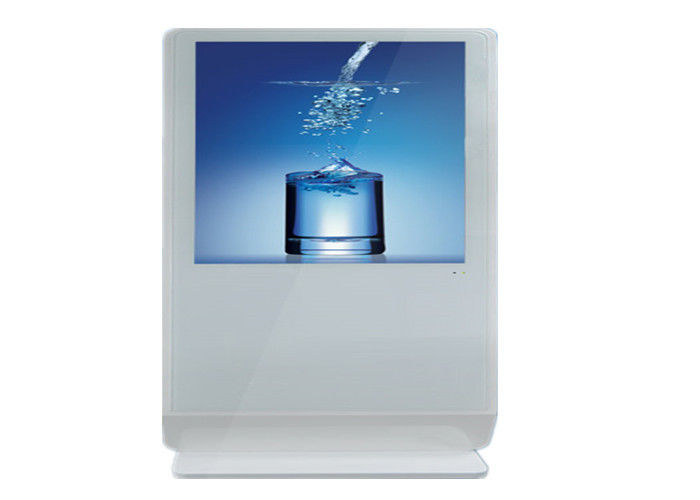

Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage

Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage

  • Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage
  • Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage
  • Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage
Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: OEM, ODM, CRE
Certification: ROHS, CE, FCC, CCC, ISO9001
Model Number: FS41
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Anti-shock and environment protecting material Carton Box for Inner Box Packing , Wooden Case for Export Box Packing.
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Panel Size: 55 Inch Panel Type: TFT-LCD
Active Display Area: 1018.08 (H) X 572.67 (V) Mm Viewing Angle: ±178 (wide)
Number Of Pixels: 1920 X 1080 Aspect Ratio: 16:9
Paint Process: 170°~ 180°Baking Finish Case: 2mm Cold-rolled Sheet
High Light:

freestanding digital signage

,

floor stand display

Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage



Description:

  1. Call attention to your messaging and promotions with attractive portable floor stands and kiosks. Our eye catching floor poster stands and sign stands allow for quick and easy change outs of posters, signs and graphic inserts.
  2. For normal floor advertising kiosks, the screen position is absolute vertical to the floor, it makes audiences do not have a good experience if too close to the digital signage for some special application. Like reception of hotel, fashion shop, 4S store etc. where people need to take a close look at advertising kiosk.  Be based on feedback of our client and our 7 years production experience, the upward bevel can save this problem very well. With the piano white paint and elegant design, this is a perfect solution for your place.



General Specifications:

Panel Specifications

Items

Specification

Unit

Panel Size

55 (support custom make)

Inch

Panel Type

TFT-LCD

/

Active Display Area

1018.08 (H) x 572.67 (V)

mm

Display Colors

10 bit, 16.7 Million

Colors

Number of Pixels

1920 x 1080

Pixel

Luminance of White

400 (Typ.)

cd/m2

Contrast

4000:1 (Typ.)

/

Viewing Angle

±178 (wide)

Degree

Aspect Ratio

16:9

/

Response Time

6 (Typ.)

m-sec

Life Time

60,000

Hours

Appearance

Color

White (default), black and customized

Case

2mm cold-rolled sheet

Paint Process

170°~ 180°Baking finish

Application

floor stand

Protection

4mm tempered glass

Others

Power Input

AC 100 ~ 240V, 50/60 Hz

Max. Power Consumption

180KW/h

Standby Power Consumption

≈5W

IP Code

IP20

Working Temperature

0 ~ 40°

Storage Temperature

-20 ~ 55°

Working Humidity

20% ~ 80%

Storage Humidity

10% ~ 90%

Unit Package

PE film + Foam corner protector + Carton

Volume and Weight

2150*30*90mm3, 89KG

Export Package

Export wooden packing

Accessories

Driver CD

Warranty

1 Year



Solution Features:

According to customer’s feedback and market demand, Screenage has released two different solutions to meet client’s standard. Please kindly check below solutions carefully to find the best one for you.

Solution Specifications for STAND-ALONE version

PCB Specifications

Items

Specifications

Supported Format

Video Format

MPG, MPG-1, MPG-4, AVI, MP4, DIV, TS, TRP, WMV, M2TS, MKV, RM, RMVB

Image Format

JPEG, BMP, PNG

Audio Format

MP3, WMA



Video Decoding

Resolution Ratio

1920 x 1080 @60Hz (Max)

Color Depth

24bit (Max)

Frame Rate

30frm/s (Max)

Code Stream

USB2.0 device: 30Mbit/sec (Max)

Audio Decoding

Sampling Rate

32KHz, 44.1KHZ, 48KHz, 96KHz

Bit Rate

32kbps to 448kbps

Ports

USBx1, HDMIx1, SD card plugx1

Frequency Response

USB2.0 Max480Mbps

Language

English (default) and multi



Solution Specifications for Netversion

Android Specifications

Parts

Specifications

Processor

All-winner, A20 (1.0G, dual core)

RAM

1G, DDR3

Memory

Build-in FLASH memory 8G

Multiple Storage Media Support

Support USB 2.0/ SD/ MMC card

Video Output

HDMI Video Output

Audio Output

Dual-channel stereo audio output

Remote control

Available

Operation System

Android 4.2.0

OS language

English (Default, multi language supported)

I/O

USB2.0 x 2, RJ-45 x 1, TF card plug x 1, AV x 1,HDMI x 1,DC x 1

WIFI

Include

3G module

Optional



Hospital Floor Standing Lcd Advertising Player , White Freestanding Digital Signage 0



Functions:

  • Support horizonal and vertical play
  • Switch on automatically loop playback
  • Automatically generate play logs
  • Advertising spots feature
  • Support timer switch function
  • Support play files & roll-text in the specified time, support play list
  • Support play video with connected photo and roll-text



Features:

  1. Thief-proof
  2. Ultra-thin and ultra-light transmission tempered glass or acrylic protective layer
  3. Fully enclosed aluminum frame, cold-rolled steel design shell
  4. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill
  5. Design for both horizontal and vertical use
  6. Ultra-high-fidelity sound, pleasant stereo sound
  7. Remote controller adopt password control, access control and softdog U dish
  8. Support picture split, video split, rolling marquee, timing ON/OFF, playlist setting, ect
  9. Long time stable operation, adopt wide viewing angel technology, high brightness industrial LCD panel



Applications:

  1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
  2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
  3.  Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
  4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
  5. Public Service: Hospital, School, Telecom, Post office, etc.
  6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.





Place of Origin:

Shenzhen, China

Brand Name:

SCREENAGE

Certification:

CE,ROHS, FCC

Model Number:

FS41



Minimum Order Quantity:

1pc

Price:

Negotiation

Packaging Details:

Export Carton

Delivery Time:

15days





FAQ:

Q: What’s the difference between STAND-ALONE version and Netversion?

A:

Items

Stand-alone version

Netversion

Play Images, videos, audios

Yes

Yes

Content update

By manual work

By Internet

Display Schedule

By manual work

By Internet

Monitoring

No

Yes

Timing

Yes

Yes



Q: Can Custom make the size, color and other functions?

A: Be based on our professional engineer team and our own metal work plant, Screenage not only can provide our standard, but also can provide OEM&ODM service.



Q: What’s the MOQ?

A:or our standard product is 1pc, 10pcs for custom make.



Place of Origin:

Shenzhen, China

Brand Name:

SCREENAGE

Certification:

CE,ROHS, FCC

Model Number:

FS41



Minimum Order Quantity:

1pc

Price:

Negotiation

Packaging Details:

Export Carton

Delivery Time:

15days

Payment Terms:

T/T, L/C and negotiation

Supply Ability:

1,000 pcs per month
